杯型树脂砂轮

当前位置：首页 > 杯型树脂砂轮

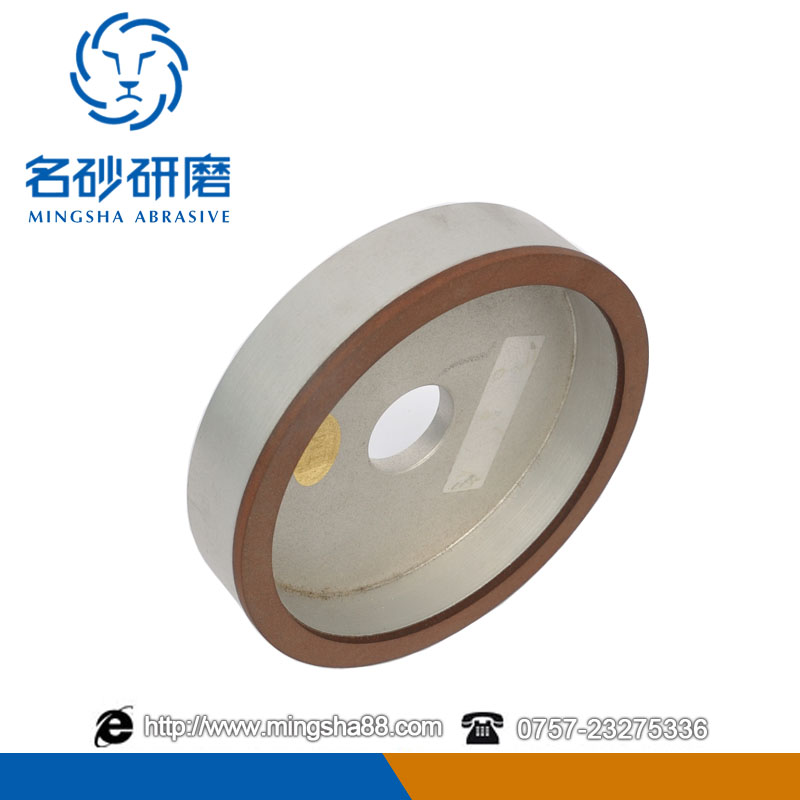

金刚石树脂砂轮

用途：用于加工各种磁性材料、合金刀具、刃具、硬脆性非金属材料、陶瓷、玻璃、珠宝、模具表面加工、平面磨、外圆磨、内圆磨、切入削磨、成型磨削等

形状：平形、平形带弧、碟形、碗形、杯形、单斜边形、双斜边形、单面凹形、双面凹形、异形、油石、磨头（磨头柄3cm-6cm）

规格型号：可根据各户要求定做

产品尺寸范围
外径尺寸	3-400mm
厚度	3-50mm
孔径	根据不同机床要求而配置

产品规格外径（D）高度（H）粒度宽度（b）内孔（d）浓度
3-20	3-20	120-800	3-20	6-13	75%
50	3-40	120-800	3-20	6-32
80	3-45	120-800	3-20	6-32
100	3-45	120-800	3-20	6-32
125	3-45	120-800	3-20	6-32
150	3-45	120-800	3-20	6-32
200	3-45	120-800	3-20	6-75
250	3-45	120-800	3-20	6-75
300	3-45	120-800	3-20	6-127
350	3-50	120-800	3-20	6-127
400	3-50	120-800	3-20	6-203

Diamond resin grinding wheel(cup)

Use: used in the processing of magnetic materials, alloy cutting tool, hard brittle non-metallic materials, ceramics, glass, jewelry, mold surface processing, surface grinding, cylindrical grinding, grinding, grinding, grinding and cutting

Shape: flat, flat belt arc, dish, bowl, cup, single and double bevel shaped bevel shaped, single and double concave, concave shaped, stone, grinding head (grinding head 3cm-6cm)

Specifications: can be customized according to customer requirements

Product size arrange
OD	3-400mm
Thickness	3-50mm
Bore diameter	根据不同机床要求而配置

Product specification Diameter（D） Height（H） Grit width（b） bore diameter（d） concentration
3-20	3-20	120-800	3-20	6-13	75%
50	3-40	120-800	3-20	6-32
80	3-45	120-800	3-20	6-32
100	3-45	120-800	3-20	6-32
125	3-45	120-800	3-20	6-32
150	3-45	120-800	3-20	6-32
200	3-45	120-800	3-20	6-75
250	3-45	120-800	3-20	6-75
300	3-45	120-800	3-20	6-127
350	3-50	120-800	3-20	6-127
400	3-50	120-800	3-20	6-203
